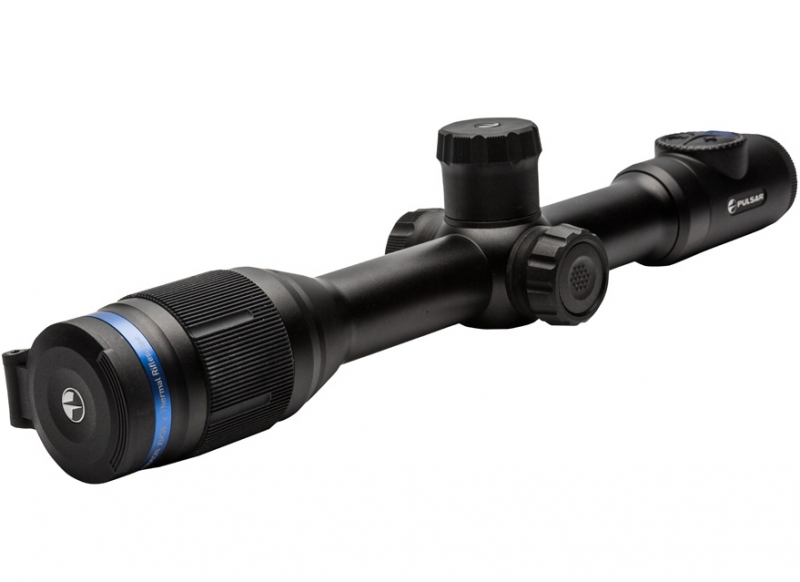

俄罗斯PULSAR 脉冲星THERMION XP38热成像瞄准镜

/, 脉冲星瞄准镜/俄罗斯PULSAR 脉冲星THERMION XP38热成像瞄准镜

俄罗斯PULSAR 脉冲星THERMION XP38热成像瞄准镜

技术参数

型号THERMION XP38THERMION XP50
传感器640×480像素。@12μm640×480像素。@12μm
物镜F38 / 1.2F50 / 1.2
放大倍数,x1.5 – 12(x8变焦)2 – 16(x8变焦)
检测范围,m13501800
传感器类型非制冷非制冷
分辨率,像素640×480640×480
像素间距,μm1717
帧速率,Hz5050
视场(HxV),度/米@ 100米16.3×12.3 / 28.6×21.512.4×9.3 / 21.8×16.3
眼睛浮雕,mm5050
显示屏类型AMOLEDAMOLED
显示屏分辨率,像素1024×7681024×768
单击值,H / V,mm为100米28 / 2821 / 21
单击范围,H / V,mm为100米5600 / 56004200 / 4200
预装分划线数量10+10+
视频/照片分辨率,像素1024×7681024×768
视频/照片格式.mp4 / .jpg.mp4 / .jpg
内置内存,Gb1616
防护等级,IP代码(IEC60529)IPХ7IPХ7
工作温度范围-25 – +50-25 – +50
尺寸,mm394x78x80402x78x80
重量,kg0.750.9
输出电压,V3.0 – 4.23.0 – 4.2
电池类型锂离子电池组APS2锂离子电池组APS2
容量,mAh20002000
电池组工作时间(t = 22°C),h *5+5+
外部电源5V5V
最大反膛武器(Eo)的后坐力,焦耳60006000
光滑步*,口径的抗冲击性1212
安装支架标准30毫米环标准30毫米环
Wi-Fi频率2.4GHz的2.4GHz的
Wi-Fi标准802,11 b / g / n802,11 b / g / n
Wi-Fi接收范围,m1515
SKU(型号#)7652476525
